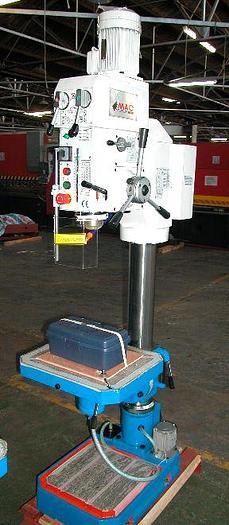

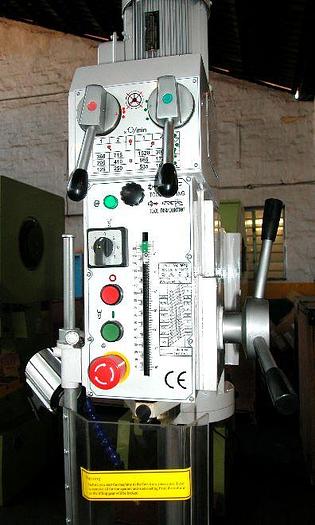

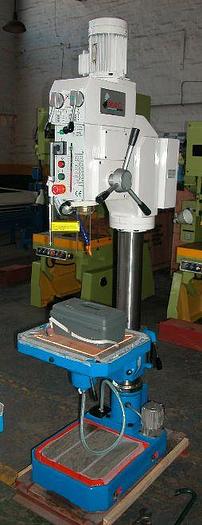

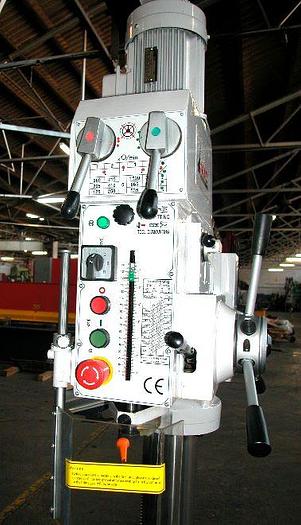

MAC Drilling machine

Model: ZN5035 ZN5035 B Max drilling diameter (steel) 35mm 35mm Max taping diameter (steel) M20 M20 Distance between spindle center line to the center line of column: 320mm 320mm Max distance between spindle end to the surface of the worktable: 625mm 625mm Max distance between spindle end to the worktable surface of the base: 1180mm 1180mm Max stroke of the spindle: 155mm 155mm Spindle taper: MT4 MT4 Number of speed steps of the spindle: 12 12 Feed steps of the spindle: x 3 Feed range of the spindle: x 0.12 , 0.2 , 0.3 Spindle speed range: 125 ~ 3030 r/min 125 ~ 3030 r/min Max stroke of worktable and its brackets: 560mm 560mm Rotation degree of spindle box in horizontal plane: 45 degrees 45 degrees Working area of the worktable: 500mm (L) x 420mm (W) 500mm (L) x 420mm (W) Working area of the worktable of the base: 370mm (L) x 360mm (W) 370mm (L) x 360mm (W) Numbers and width of the slots for worktable of base: 2-T14 / 2-T14 2-T14 / 2-T14 Diameter of column: 120mm 120mm Power and speed of the main motor: 1.5 Kw / 1440 & 2800 rpm 1.0/1.2 Kw & 1440/2880 rpm Power and flow rate of the coolant pump motor: 0.086 Kw / 6 L per min 0.086 Kw / 6 L per min Machine dimensions: 875mm x 510mm x 2140mm 875mm x 510mm x 2140mm Weight: 420 Kg 430 Kg
