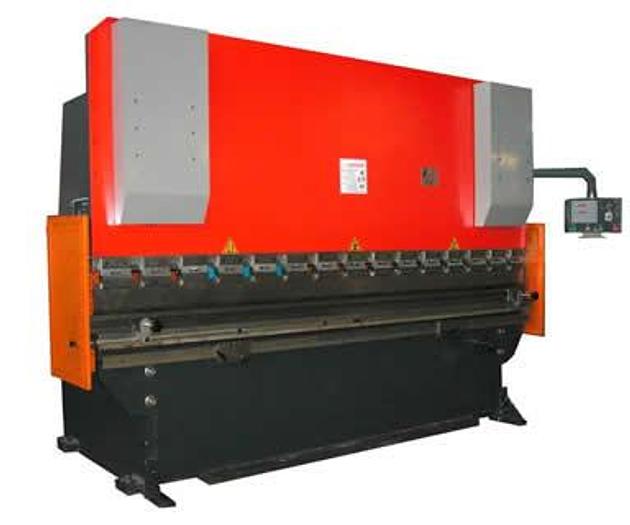

MAC Hydraulic Pressbrake

MAC Hydraulic Pressbrake

Contact us for price

Pretoria, South Africa

orCall (012) 546 - 5616


This info is to best of our knowledge, but is not binding in detail


ModelWC67Y - 63X 3200
Nominal stress630Kn
Length of working table3200 mm
Distance between crutches2600 mm
Depth at throat gap320mm
Ram stroke100mm
Max opening between table and ram320mm
Ram speed running10 mm/s
Main motor power5.5 Kw
Max working pressure of hydraulic system26 Mpa
Axial piston pump flow25 L/min
Dimensions(L) 3360 mm x (W) 1600 mm x (H) 2550 mm
Weight5800 Kg
