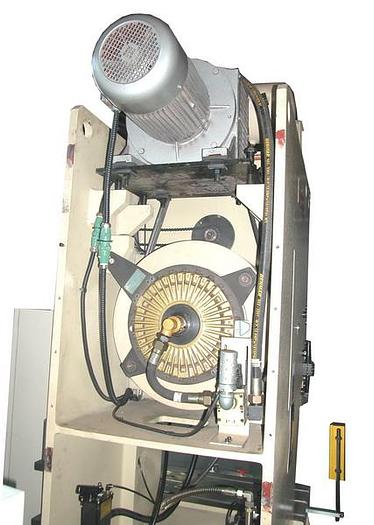

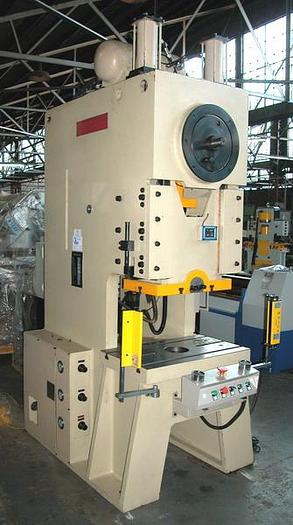

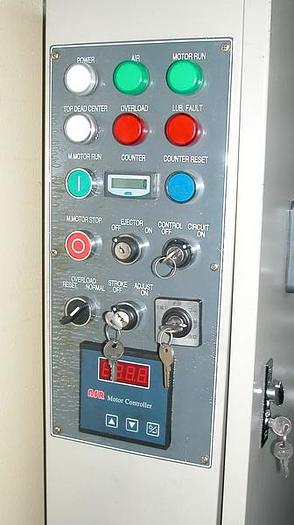

MAC Eccentric press with adjustable stroke, pneumatic.
MAC Eccentric press with adjustable stroke, pneumatic.
Contact us for price
Location:Pretoria, South Africa
or
Call (012) 546 - 5616
Description
This info is to best of our knowledge, but is not binding in detail.
Specifications
| Model | JL21-63A |
| Condition | Used |
| Nominal capacity | 630 KN |
| Nominal capacity stroke | 4mm |
| Stroke of slide | 12,5mm - 120mm |
| Strokes | 50 - 80 SPM |
| Max die set height | 300mm |
| Die height adjustment | 80mm |
| Size of table | 500mm x 850mm |
| Thickness of table | 90mm |
| Size of opening in table | 125mm diameter |
| Bottom size of slide | 350mm x 600mm (FB x LR) |
| Hole for punch shank | 50mm x 60mm diameter (Diameter x dept) |
| Distance between iprights | 570mm |
| Overall dimensions | 1145mmx 1550mm x 2870mm (LR x FB x H) |
| Main motor | 7,5 Kw |
| Air pressure | 0,5 MPa |
| Total weight | 6200 kg (approximately) |
