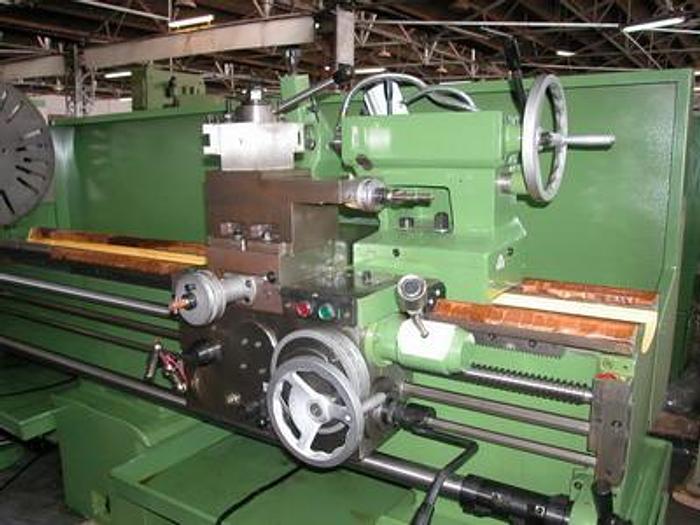

MAC Center Lathe
MAC Center Lathe
Contact us for price
Location:Pretoria, South Africa
or
Call (012) 546 - 5616
Description
This info is to best of our knowledge, but is not binding in detail.
Specifications
| Model | CS6266C x 2000mm |
| Condition | Used |
| Swing over bed | 660mm |
| Swing over cross slide | 420mm |
| Swing over gap | 870mm |
| Distance between centers | 2000 |
| Main spindle bore diameter | 105mm |
| Spindle speed | 30-1600rpm, 24speeds |
| Taper of spindle nose | 113mm MT6 |
| Cross slide travel | 310mm |
| Compound slide travel | 145mm |
| Max. size cutting tool | 25mm x 25mm |
| Spindle travel | 150mm |
| Tail-stock taper of center | MT5 |
| Bed width | 390mm |
| Bed pitch of lead-screw | 120mm or 2TPI |
| Main drive motor | 10HP(7.5KW) |
| Coolant pump motor | 90W |
| Rapid traverse motor | 250W |
| Weight | 2600 Kg |
| Extras | 3 & 4 Jaw chucks, steady’s, quick change tool post, face plate. |
