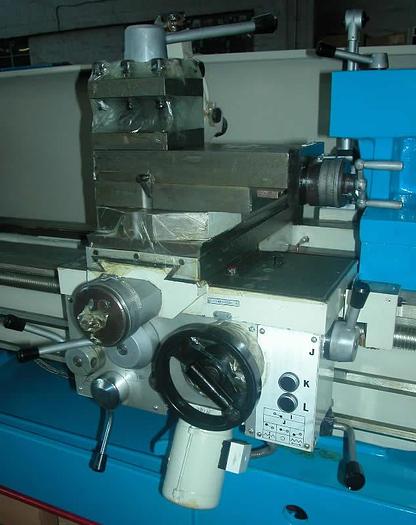

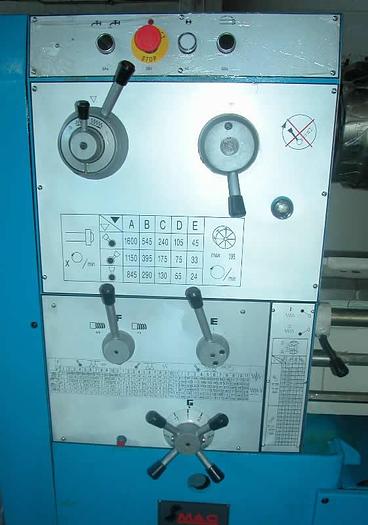

MAC Center Lathe (ONLY AVAILABLE ON SPECIAL ORDER, 120 DAYS DELIVERY TIME)
MAC Center Lathe (ONLY AVAILABLE ON SPECIAL ORDER, 120 DAYS DELIVERY TIME)
Contact us for price
Pretoria, South Africa
orCall (012) 546 - 5616
Description
This info is to best of our knowledge, but is not binding in detail.
Specifications
Model | CD6260C |
Condition | Used |
Swing over bed | 600mm |
Swing over cross | slide 360mm |
Swing over gap | 730mm |
Distance between centers | 2000 |
Effective lenght of gap | 260mm |
Center height | 300mm |
Range of spindle speeds | 24 ~ 1600 rpm |
Diameter of spindle bore | 80mm |
Inside taper of spindlebore | Metric 85 |
Max travel of cross slide | 305mm |
Max travel of top slide | 130mm |
Max size of tool bit | 25mmx 25mm |
Tail-stock taper of center | MT5 |
Max travel of tailstock sleeve | 120mm |
Max cutting force | 4100N |
Main drive motor | 10HP(7.5KW) |
Net weight | 2130 kg |
Extras | 3 & 4 Jaw chucks, steady’s, quick change tool post, face plate. |
